Filter Cartridge
Industrial Filter Cartridges &
Carbon Block Elements
Advanced liquid and process filtration cartridges engineered for continuous solids removal, sediment control, high dirt-holding capacity, and organic contaminant adsorption. Dev Filter Technology manufactures high-performance PP spun, wound, pleated, and CTO carbon block filter cartridges designed to protect downstream equipment and optimize fluid clarity.
Graded Density & Surface
Engineered with multi-layer depth matrix and high surface pleated configurations for maximum retention efficiency.
100% Pure Polypropylene
Thermally bonded virgin PP fibers free from adhesives, binders, or surfactants to eliminate extractables.
Extended Service Life
High dirt loading capacity and low initial differential pressure drop ensure longer cycle times between replacements.
Universal Compatibility
Standard lengths (10″ to 40″) with DOE, Code 7, and customized end-cap adapters to fit standard filter housings.
High-Efficiency Process Filter Cartridges
Discover our full range of depth, wound, membrane pleated, and activated carbon block cartridges engineered for RO pre-filtration, pharmaceuticals, chemicals, and water treatment.

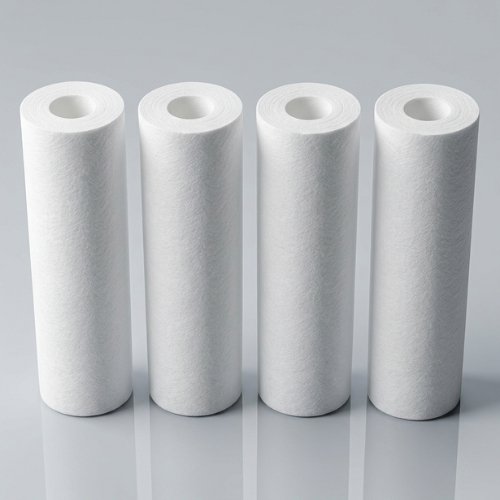

PP Spun Filter Cartridge
Dev Filter Technology manufactures thermally-bonded Melt Blown PP Spun Filter Cartridges constructed from 100% pure polypropylene microfibers. Designed without chemical binders or adhesives, these cartridges feature a progressive density structure—coarser on the outer surface and finer towards the inner core. This structure maximizes dirt-holding capacity, protects RO membranes, and ensures excellent chemical compatibility for water, solvents, and chemical slurries.
| Material Base | 100% Thermally Bonded Polypropylene (PP) |
| Filtration Rating | 1 Micron to 100 Micron |
| Cartridge Structure | Melt-Blown Depth Filtration (Progressive Density) |
| Operating Temp | Up to 80°C Continuous |
| Flow Characteristics | High Flow Rate with Low Initial Differential Pressure |
| Construction Type | Pure PP Microfiber (No Binders or Additives) |
| Standard Lengths | 10″ / 20″ / 30″ / 40″ Options |

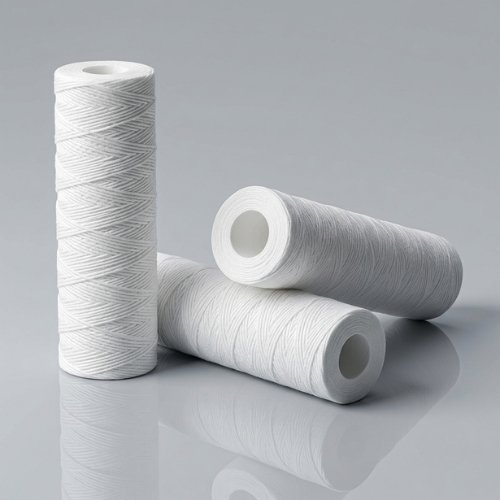

PP String Wound Filter Cartridge
Engineered for high-temperature and heavy-dirt loading applications, our PP String Wound Filter Cartridges are fabricated by precision-winding polypropylene yarn around a sturdy PP or stainless steel central core. The resulting diamond-pattern matrix provides true depth filtration with high mechanical stability, preventing particle bypass under high differential pressure and aggressive industrial fluids.
| Yarn Material | 100% Virgin Polypropylene (PP) Yarn |
| Core Material | Polypropylene (PP) / Stainless Steel (SS304/SS316) Core |
| Filtration Rating | 1 Micron to 100 Micron |
| Cartridge Structure | Graded Density Wound Depth Matrix |
| Operating Temp | Up to 90°C (PP Core) / Higher with Metal Core |
| Flow Rates | High Volumetric Flow with Minimal Pressure Loss |
| Standard Lengths | 10″ / 20″ / 30″ / 40″ Options |

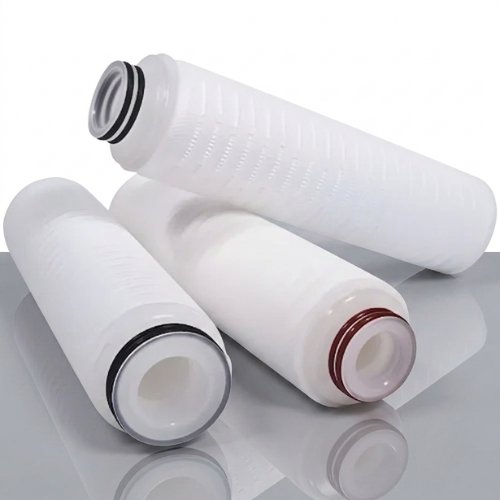

PP Pleated Membrane Filter Cartridge
Dev Filter Technology provides high-precision PP Pleated Membrane Filter Cartridges designed for high-purity liquid clarification and absolute particle retention. Utilizing folded polypropylene membrane media, these cartridges offer up to five times higher surface area than standard depth cartridges. This results in significantly increased flow rates, lower operational energy costs, and washable/reusable performance for critical pharma and chemical systems.
| Filter Media | Polypropylene (PP) Micro-Porous Membrane |
| Filtration Rating | 0.5 Micron to 50 Micron (Absolute & Nominal) |
| Structure | High Surface Area Pleated Design |
| Operating Temp | Up to 80°C Continuous |
| Flow Rate | Very High Flow with Ultra-Low Pressure Drop |
| Maintenance | Washable & Reusable Surface Filtration |
| Standard Lengths | 10″ / 20″ / 30″ / 40″ (DOE & Code 7 End-Caps) |

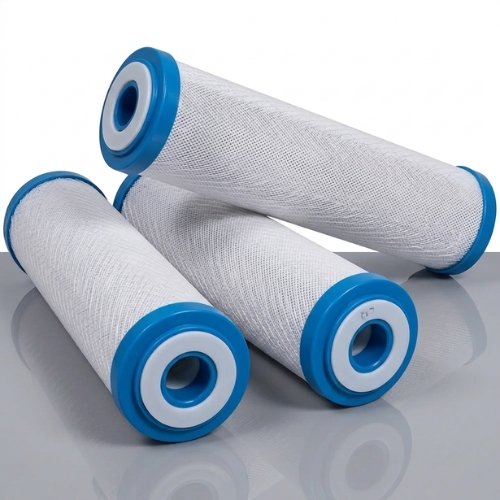

CTO Activated Carbon Block Cartridge
Specially engineered for Chlorine, Taste, and Odor (CTO) removal, our Activated Carbon Block Cartridges combine high-density extruded activated carbon with outer non-woven pre-filtration sleeves. These cartridges effectively absorb free chlorine, organic VOCs, color, and volatile impurities while simultaneously capturing fine particulates, delivering crystal-clear water and protection for commercial RO systems.
| Active Media | High-Purity Extruded Activated Carbon Block |
| Filtration Rating | 5 Micron to 10 Micron Depth Particle Control |
| Primary Function | Free Chlorine, Odor, Organic VOC & Color Removal |
| Operating Temp | Up to 50°C Max |
| Max Operating Pressure | 125 PSI Max Differential |
| Adsorption Rate | High Carbon Surface Area for Maximum Retention |
| Available Sizes | 10″ / 20″ / 30″ Standard Diameter Options |
Industries & Applications for Filter Cartridges
Dev Filter Technology provides engineered cartridge solutions tailored for diverse liquid processing, chemical clarification, and water treatment needs.
Sediment removal and chlorine adsorption pre-filtration for industrial RO units.
Sterile fluid polishing, active ingredient purification, and solvent filtration.
Acid, alkali, organic solvent, and resin particulate separation.
Hygienic water clarification, ingredient fluid polishing, and syrup processing.
Removal of pigment agglomerates and un-dissolved binder particles.
Heavy-duty continuous particulate removal from recirculating industrial fluids.
Get the Right Filtration Solution for Your Industry
We manufacture high-performance industrial filtration products including filter cloths, filter press cloths, centrifuge cloths, cartridges, and filter bags. Share your requirement and our team will guide you with the best suitable solution.
